High Accuracy Industrial Pressure Transmitter , Pump Compressors Pressure Sensor

Name: High Accuracy Industrial Pressure Transmitter Pump Compressors Pressure Sensor
Brand: ZHYQ
Price: 1 USD

Wholesale High Accuracy Industrial Pressure Transmitter , Pump Compressors Pressure Sensor from china suppliers

Brand Name : ZHYQ

Model Number : PT124B-213

Certification : CE, ROHS, SIL, etc

Place of Origin : China

MOQ : 1 piece

Price : Negotiate

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pieces per month

Delivery Time : within 7 days

Packaging Details : 1 piece per package or as customer's request

Pressure range : 0~1500bar

Ouptut : 4-20mA,0-10V, etc

Process connector : G1/4, G1/2（Customer design）

Electric connector : Hirschman(DIN), M12(4pins) optional

Contact Now

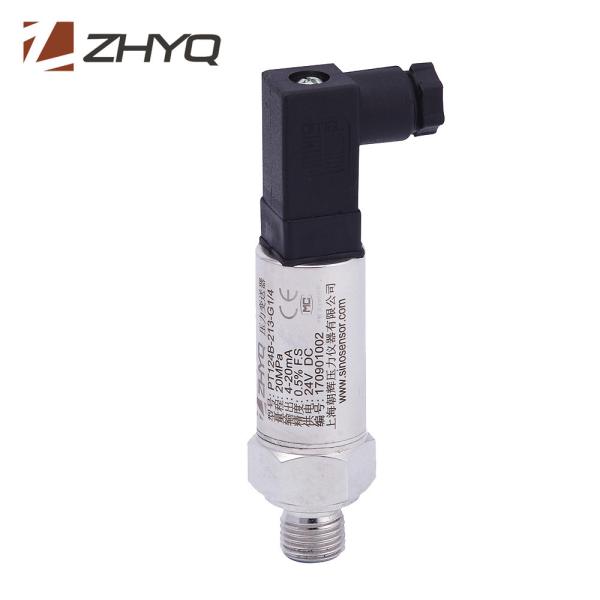

Industrial Pressure Transmitter Pump Compressors Pressure Sensor

Description

PT124B/G-213 adopts ceramic sensor chip, with stainless steel encapsulation, This series is especially suitable in the occasion where Installation space is restricted and has the feature of wide range temperature compensation, high accuracy, non-calibration, wide range, and OEM Process. This model has wide application in hydraulic pressure, auto-controlling house, constant pressure water supply, loading machine, and liquid pressure measuring and controlling in automatization fields. PT124G-213 welding a amplification circuit will be change to PT124B-213 , the Analog signal output can connect with PLC directly .

Application

Mechanical Engineering Industry
Industrial test and controlVarious industrial standard signal output

Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
different dimension design

Specification

Range:	0~5bar~50bar
Accuracy:	0.5%FS; 0.25%FS
Nonlinearity:	0.2%FS
Reliability:	0.2%FS
Output:	4-20mA,0-10V, 0-5V, 1-5V, 0.5-4.5V (PT124B-213) ; 1.5mV/V , 2mV/V (PT124G-213)
Input voltage:	24(12-36)VDC ( 4-20mA,0-10V, 1-5V, 0-5V output ) 5 V DC ( 0.5-4.5V output ) 10V DC ( 1.5mV/V , 2mV/V output )
Operate Temperature:	-20~80℃
Compensated temperature:	0~75℃
Overload pressure:	150%FS
Medium material:	stainless steel (SS304 or SS316)
Electric connector:	Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional
Process connector:	G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design)
Housing Shell Diameter:	￠22mm , ￠23mm , ￠26mm, ￠38mm optional
